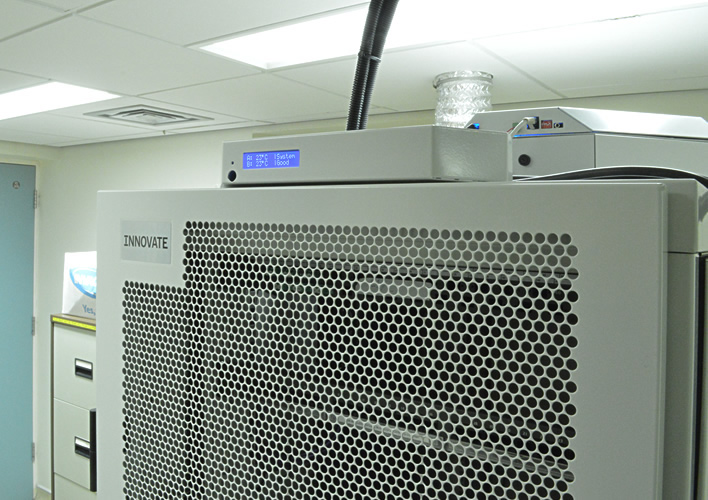

ICAS Flex™ Cooling Rack

The ICAS (Intelligent Controlled Airflow System) Flex™ rack allows the hot air directly from the server environment to be ducted via a twin hose. The air can be ducted away in the following ways;

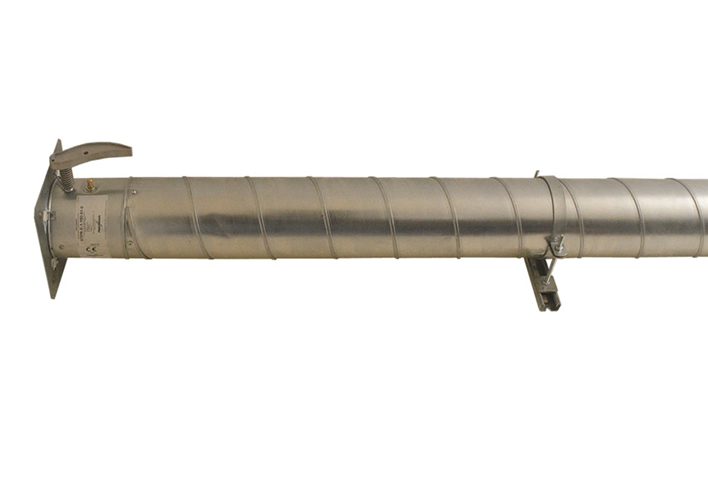

outside the building via industry standard connectors
into a ceiling plenum
using on board thermostatic control into the building to reduce heating costs

This allows for the virtual elimination of heat build up in the room and negating the need for constant CRAC operation.

ICAS Flex

Prices* - ICAS Flex™ Cooling Rack
Product Code	U	Cooling	Dimensions (H x W x Dmm)**	MRRP
ICAS-F530-68	30U	Flex Single Fan	1697 x 600 x 800	POA
ICAS-F530-88	30U	Flex Single Fan	1697 x 800w x 800d	POA
ICAS-F530-610	30U	Flex Single Fan	1697 x 600w x 1000d	POA
ICAS-F530-810	30U	Flex Single Fan	1697 x 800w x 1000d	POA
ICAS-F530-612	30U	Flex Single Fan	1697 x 600w x 1200d	POA
ICAS-F530-812	30U	Flex Single Fan	1697 x 800w x 1200d	POA

ICAS-F536-68	36U	Flex Single Fan	1964 x 600 x 800	POA
ICAS-F536-88	36U	Flex Single Fan	1964 x 800 x 800	POA
ICAS-F536-610	36U	Flex Single Fan	1964 x 600 x 1000	POA
ICAS-F536-810	36U	Flex Single Fan	1964 x 800 x 1000	POA
ICAS-F536-612	36U	Flex Single Fan	1964 x 600 x 1200	POA
ICAS-F536-812	36U	Flex Single Fan	1964 x 800 x 1200	POA

ICAS-F542-68	42U	Flex Single Fan	2231 x 600 x 800	POA
ICAS-F542-88	42U	Flex Single Fan	2231 x 800 x 800	POA
ICAS-F542-610	42U	Flex Single Fan	2231 x 600 x 1000	POA
ICAS-F542-810	42U	Flex Single Fan	2231 x 800 x 1000	POA
ICAS-F542-612	42U	Flex Single Fan	2231 x 600 x 1200	POA
ICAS-F542-812	42U	Flex Single Fan	2231 x 800 x 1200	POA

ICAS-F1030-68	30U	Flex Dual Fan	1697 x 600 x 800	POA
ICAS-F1030-88	30U	Flex Dual Fan	1697 x 800 x 800	POA
ICAS-F1030-610	30U	Flex Dual Fan	1697 x 600 x 1000	POA
ICAS-F1030-810	30U	Flex Dual Fan	1697 x 800 x 1000	POA
ICAS-F1030-612	30U	Flex Dual Fan	1697 x 600 x 1200	POA
ICAS-F1030-812	30U	Flex Dual Fan	1697 x 800 x 1200	POA

ICAS-F536-68	36U	Flex Dual Fan	1964 x 600 x 800	POA
ICAS-F536-88	36U	Flex Dual Fan	1964 x 800 x 800	POA
ICAS-F536-610	36U	Flex Dual Fan	1964 x 600 x 1000	POA
ICAS-F536-810	36U	Flex Dual Fan	1964 x 800 x 1000	POA
ICAS-F536-612	36U	Flex Dual Fan	1964 x 600 x 1200	POA
ICAS-F536-812	36U	Flex Dual Fan	1964 x 800 x 1200	POA

ICAS-F542-68	42U	Flex Dual Fan	2231 x 600 x 800	POA
ICAS-F542-88	42U	Flex Dual Fan	2231 x 800 x 800	POA
ICAS-F542-610	42U	Flex Dual Fan	2231 x 600 x 1000	POA
ICAS-F542-810	42U	Flex Dual Fan	2231 x 800 x 1000	POA
ICAS-F542-612	42U	Flex Dual Fan	2231 x 600 x 1200	POA
ICAS-F542-812	42U	Flex Dual Fan	2231 x 800 x 1200	POA

*Prices exclude VAT and delivery.
**Height does not include castors or plinth which will add an additional 100mm.

Technical Specifications - ICAS Flex™ Cooling Rack
Product Code	ICAS-F
Physical Rack Capacity	30, 36 or 42 x EIA 1¾”/ 44.5 mm rack spaces; 4-post rack, fully EIA-compliant, with adjustable front and rear mounting profiles.
Mobility	The cabinet is shipped with four transport castors as standard.
Rear and Side Access	All doors and both side panels are easily removed for installation and maintenance access.
Security	The front and rear doors each have one barrel lock and both side panels have two barrel locks each. Additional security such as entry alarms, combination locks etc. can also be purchased.
Cable Entry	Cables can enter from the floor and top of the cabinet.
Fan Unit Power	Power for the cooling fans is supplied by standard UK 3-pin plugs, however, other leading plug types such as IEC C14 can be supplied on request.

ICAS Flex™ Cooling Rack Benefits*

	Save Money - cooling racks rather than whole rooms means you can turn off expensive air-conditioning!
	N+1 server room redundancy - new cooling technologies can be run off existing UPS devices
	Green - use much less energy by cooling a smaller space using more efficient technologies
	Cool - innovative air-flow design or water cooling provides more efficient yet effective thermal performance

	Lockable - security features are available for each rack to ensure your equipment is safe
	Easy to Deploy - for most specialist rack solutions simply plug and go
	Expandable - if you need more capacity, just add another!
	Portable - easily moved to another room or building
	Dustproof - this cooling rack has optional dust filtering

*Benefits depend on solution selected.

About Our Cooling Solutions

Despite advances in cooling technology, many server rooms are operating inefficiently. As businesses move much of their computing power to the cloud, computer rooms are increasingly likely to be over-specified in terms of space and the capability of the CRAC (Computer Room Air Conditioning) unit.

Our cooling solutions provide a simple and efficient way of removing the heat from rackmounted equipment in server rooms and offices.

All our air-cooled solutions have low power draw and, unlike the vast majority of CRAC units, they can be powered by existing UPS's with sufficient capacity, guaranteeing additional resilience in the event of a power outage.

Our water-cooled solutions offer N+1 and N+N resiliance configurations, plus the option of award winning, patented Leak-Proof Technology.
